How to test Hardened Concrete for Quality of Construction

Hardened concrete gains strength with time and testing these hardened concrete for quality check is important for structures. Different types of tests are available to check different properties of hardened concrete which are discussed.

Properties of Hardened Concrete

  • Early volume change
  • Creep Properties
  • Permeability
  • Stress-Strain Relation
Early Volume Change (Shrinkage) may result in cracking. Plastic Shrinkage occurs due to water loss from fresh paste by evaporation or from suction by dry surface. Volume decreases up to 1% when the paste is still plastic. Controlling water loss may help to prevent plastic shrinkage of concrete.
Drying Shrinkage occurs due to loss of water and/or cooling. 15-30% of dry shrinkage occurs in the first 2 weeks, 65-85% in first year. Drying shrinkage can be induced by lack of curing, high water-cement ratio, high cement content, low coarse aggregate content and existence of steel reinforcement. It depends on size and shape of concrete structure and may be non-uniform due to non-uniform loss of water.
Swelling may occur if concrete is cured continuously in water after settling. Its effects are relatively small and does not cause significant problems.
Stress-Strain Relation of hardened concrete is shown in figure below:
STRESS STRAIN OF CONCRETE
Aggregate and cement paste individually show a linear stress-strain, due to micro-cracking between the aggregate and cement paste interface, but concrete is nonlinear. For structural design, we need compressive strength (fc) and modulus of elasticity (E).

Tests on Hardened Concrete

Tests performed on hardened concrete are:
  • Compressive strength test (most common) – DT
  • Modulus of Elasticity – NDT
  • Split-tension test – DT
  • Flexural strength test – DT
  • Rebound hammer test – NDT
  • Penetration resistance test – NDT
  • Ultrasonic pulse velocity test – NDT
  • Maturity test – NDT

Compressive Strength Test (fc’)

COMPRESSION TEST ON CONCRETE
ASTM C39: Cylindrical specimen (6 in. by 12 in.) is used for this test. For normal-weight concrete: fc’ range is 21 MPa to 34 MPa (3000 psi to 5000 psi). Compressive strength depends on specimen size, larger specimens has greater probability for weaker elements, reducing strength and have less variability and better representation of actual concrete.
How does failure occur?
Weakest location of hardened concrete is the interface between cement paste and aggregate

Modulus of Elasticity – Ec Test on Hardened Concrete

ASTM C469 is used to determine the chord modulus. 3-4 loading steps are needed in this method. Same sample is used. This method provides a useful relationship with strength. The range of test result is 14 GPa – 41 GPa (2000 ksi to 6000 ksi).
Poisson’s Ratio is determined using ASTM C469. Range is between 0.11 to 0.21, depending on aggregate, moisture, age, and compressive strength.

Split Tension Test on Hardened Concrete

SPLIT TENSION TEST ON CONCRETEThis test measures the tensile strength on concrete (ASTM C496). Cylinder is subjected to compressive load along vertical diameter at a constant rate until fatigue. Failure occurs along vertical diameter due to tension developed in transverse direction.
Split tension is computed by T = 2p/BLD
where:
T = tensile strength, MPa (psi)
p= load at failure, N (psi)
L = length of specimen, mm (in.)
D = diameter of specimen, mm (in.)
Tensile strength varies from 2.5 MPa to 31 MPa (360 psi to 450 psi), about 10% of compressive strength

Flexure Strength Test (ASTM C78) on Hardened Concrete

FLEXURAL STRENGTH TEST ON CONCRETEThis test is used for measuring Modulus of Rupture (MR). It is an important test for road and airport concrete pavements. Beam specimen of square x-section is loaded into a 3-point loading apparatus·

Calculation of Modulus of Rupture

If the fracture occurs in the middle 1/3 of the span
R = PL/(bd^2)
Where:
R = flexure strength, MPa (psi)
P = maximum load applied, N (lb)
L = span length, mm (in.)
b = average width of specimen, mm (in.)
a = average depth of specimen, mm (in.)
If fracture occurs further outside the middle third, the results must be thrown out
Useful relationships:
  • R = (0.62 to 0.83)fc’^0.5 (S.I. units)
  • R = (7.5 to 10)fc’^0.5 (English units)

Rebound Hammer Test (Schmidt Hammer Test) on Hardened Concrete

Rebound Hammer TestIt is a non-destructive test performed on hardened concrete. A spring-loaded mass hits the concrete’s surface and scale measures how far the mass rebounds. The higher the rebound, the harder the concrete’s surface, and the greater the concrete’s strength.
Use a calibration chart graphs supplied to related the rebound to strength. 10 to 12 reading are performed per specimen. The test is used to test the uniformity of the concrete.

Penetration Resistance Test (Windsor Probe Test)

It is a non-destructive test. Gun-like device shoots probes into the concrete’s structure. It is performed on each of three holes in a special template. An average depth is then found. Depth is inversely related to the strength. It gives a better estimate than the rebound hammer.
Rebound hammer tests only the surface while penetration resistance test make measurements into the depth of the sample

Ultrasonic Pulse Velocity Test (ASTM C597)

ULTRASONIC PULSE VELOCITY TESTThis test measures the velocity of an ultrasonic wave passing through the concrete. The length between transducers/the travel time = average velocity of wave propagation. It is used to detect discontinuities, cracks and internal deterioration in the structure of concrete.

Maturity Test (ASTM C1074)

Maturity is the degree of cement hydration which varies with time and temperature. It is assumed that the strength is a function of maturity for a particular concrete mixture. Devices are used to measure the temperature of concrete with time.

Permeability Test on Hardened Concrete

This test affects the durability of hardened concrete and allows water and chemicals to penetrate its surface. It causes reduced resistance to frost, alkali-aggregate reactivity and other chemicals, corrosion of steel rebars.
Air voids that affect permeability are obtained from incomplete consolidation of fresh concrete, evaporation of mixing water that is not used for hydration of cement. Increasing the water/cement ratio has strong effects on permeability.  Other factors affecting permeability are age of concrete, fineness of cement particles, air entraining agents.

Creep Properties of Hardened Concrete

Creep is the gradual increase in strain, with time, under sustained load. It is a long term process (several years) and vary with type of structure. It causes increased deflection and increased stress in steel, gradual transfer of load from concrete to steel and losing some of the prestress force in prestressed concrete.

Comments

Nina Athena said…
Thank you for sharing the tips and knowledge! This is so helpful and informative! You gave me more insight on this. I would love to see more updates from you.

Elcometer
31 October 2019 at 04:49
PCTE said…
This is an amazing post. Keep sharing blogs like this. Very informative! We also share the same service and provide the best non-destructive testing equipment. Visit https://www.pcte.com.au/ for more details.
2 November 2022 at 23:06
Post a Comment

Popular posts from this blog

40+ Construction Tools List with Images for Building Construction

Construction tools list for building construction works such as concrete, brick masonry, leveling, wood works, floor works, slab works, brick laying, plastering etc. is provided. Every construction tool is necessary to achieve good results in the whole project. Along with these tools, the workers should also use some safety tools to prevent them from the unexpected accidents. Construction Tools List for Building Construction Some important construction tools and their uses are listed below: Bolster Boning rod Brick hammer Bump cutter/screed Chisel Circular saw Concrete mixer Cordless drill Crowbar Digging bar End frames Float Gloves Hand saw Helmet Hoe Iron pan Jack plane Ladder Line and pins Mason’s square Measuring box Measuring tape Measuring wheel Pick axe Plumb bob Plumb rule Polishers Putty knife Rammer Rubber Boots Safety glasses Safety helmet Sand screen machine Scratchers Sledge hammer Spade Spirit level Straight edge brushes Til
Read more

Building Materials properties and their Importance in Construction

Building materials or construction materials are the major requirement in this modern age of technology. There are many types of building materials used for different construction works. Properties of Building Materials For a material to be considered as building material, it should have required engineering properties suitable for construction works. These properties of building materials are responsible for its quality and capacity and helps to decide applications of these material. Such properties of building materials are categorized as follows. Physical properties Mechanical properties Chemical properties Electrical properties Magnetic properties Thermal properties Physical Properties of Building Materials These are the properties required to estimate the quality and condition of the material without any external force. The physical properties of engineering materials are as follows. Bulk density Porosity Durability Density Density index Specific gravity
Read more

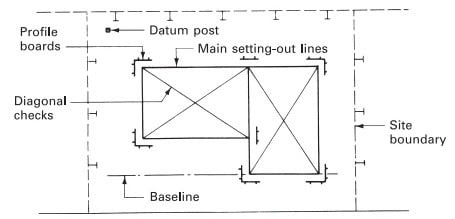

How to Prevent Errors During Setting Out Building Plan on Ground?
