How to Set Out a Building Plan on Ground with Procedure?

A building is set out in order to clearly define the outline of the excavation and the centre line of the walls, so that construction can be carried out exactly according to the plan. The centre line method of setting out is generally preferred and adopted.

Procedure for Setting Out a Building Plan on Ground

SETTING OUT A BUILDING PLAN ON GROUND
Fig.1: Example plan to be set out on the ground
1. From the plan (fig 1), the centre line of the walls are calculated. Then the centre lines of the rooms are set out by setting perpendiculars in the ratio 3:4:5. Suppose the corner points are a, b, c, d, e, f and g which are marked by pegs with nails on top.
2. The setting of the corner point is checked according to diagonals ac, bd, cf and eg.
3. During excavation, the centre points a, b, c, d, e, f, g may be removed. Therefore the centre lines are extended and the centre points are marked about 2m away from the outer edge of excavation.

Thus the points A1, A2, B1, B2 and likewise, are marked outside the trench. Centre line are shown clearly by stretching thread or rope. The centre points fixed 2m away from the excavation are marked with sit out pegs.
4. From the plan details, the width of excavation to be done is also marked by thread with pegs at appropriate positions.
5. The excavation width is then marked by lime or by with furrow with spade.
6. If the plan is much to complicated and follows a zigzag pattern, then the centre pegs are kept at suitable positions according to site conditions.

Comments

Post a Comment

Popular posts from this blog

40+ Construction Tools List with Images for Building Construction

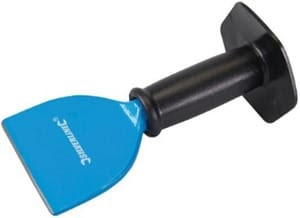

Construction tools list for building construction works such as concrete, brick masonry, leveling, wood works, floor works, slab works, brick laying, plastering etc. is provided. Every construction tool is necessary to achieve good results in the whole project. Along with these tools, the workers should also use some safety tools to prevent them from the unexpected accidents. Construction Tools List for Building Construction Some important construction tools and their uses are listed below: Bolster Boning rod Brick hammer Bump cutter/screed Chisel Circular saw Concrete mixer Cordless drill Crowbar Digging bar End frames Float Gloves Hand saw Helmet Hoe Iron pan Jack plane Ladder Line and pins Mason’s square Measuring box Measuring tape Measuring wheel Pick axe Plumb bob Plumb rule Polishers Putty knife Rammer Rubber Boots Safety glasses Safety helmet Sand screen machine Scratchers Sledge hammer Spade Spirit level Straight edge brushes Til...
